BatteryEvo WALRUS PACIFIC PRO 22K INV. 100 kWh AC110/220V 72Vdc
BatteryEvo WALRUS PACIFIC PRO 22K INV. 100 kWh AC110/220V 72Vdc

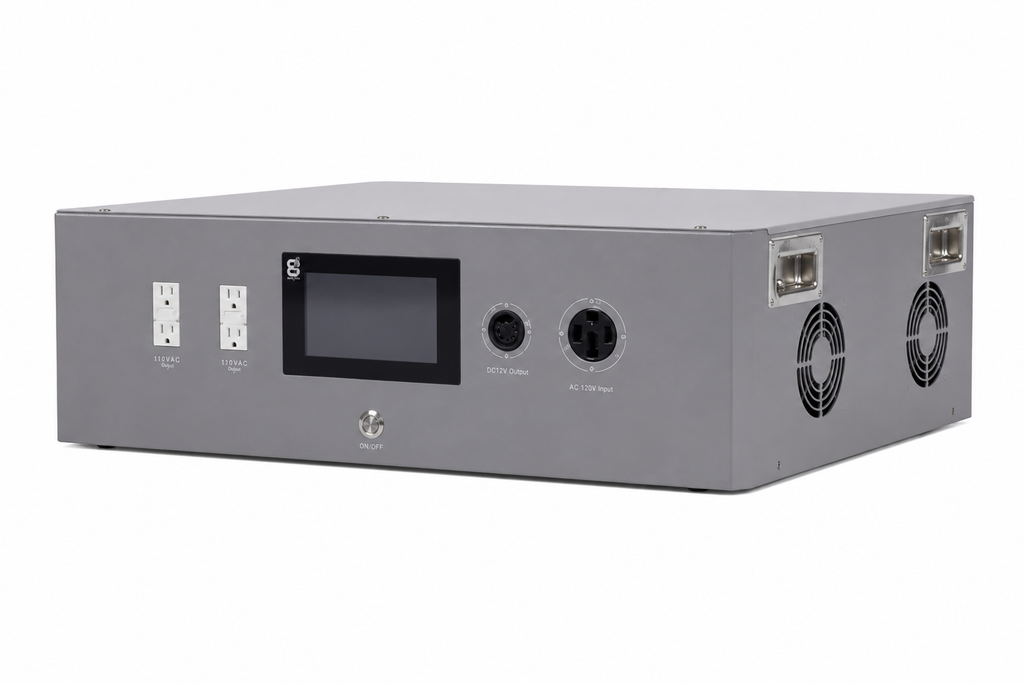

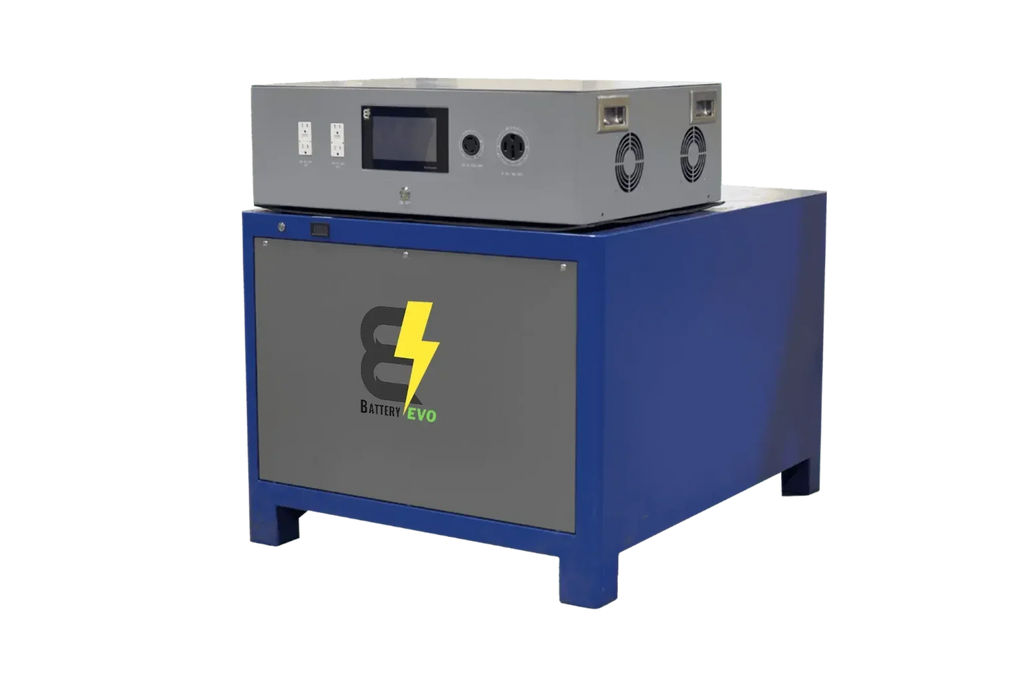

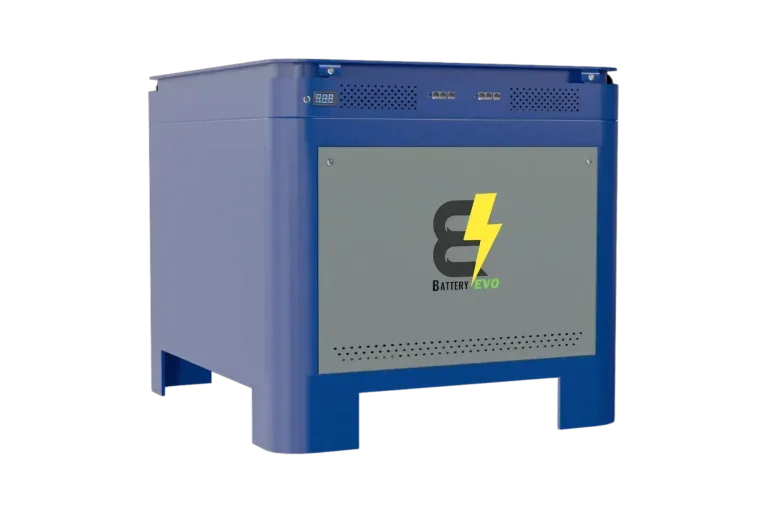

22 kVA Inverter · 100 kWh LFP · 72V / AC110-220V home backup system:
Power your home, business, or industrial facility with the BatteryEVO WALRUS PACIFIC PRO 100kWh Energy Storage System. Featuring 100kWh of LiFePO₄ energy storage and an integrated 22kVA inverter, the WALRUS PACIFIC PRO delivers dependable backup power, seamless solar integration, and intelligent energy management for the most demanding applications.
Designed for residential, commercial, and industrial installations, it includes dual 6000W MPPT charge controllers, a 7-inch touchscreen, an advanced Battery Management System (BMS), and support for heavy-duty appliances, HVAC systems, and large electrical loads. Built for maximum efficiency and maintenance-free operation, the WALRUS PACIFIC PRO is an ideal solution for achieving reliable backup power and energy independence.
| System Voltage | AC110V/220V |
| Nominal Voltage | 76.8 V |
| Chemistry | LFP |
| kWh Capacity | 100 kWh |
| Ah Capacity | 1200 Ah |
| Charging Voltage | 84 V-87.6 V |
| Max Charge Voltage | 88.8 V |
| Operating Voltage Range | 66.5 V-87.6 V |
| Suggested Low Voltage Cutoff | 66.5 V-72 V |

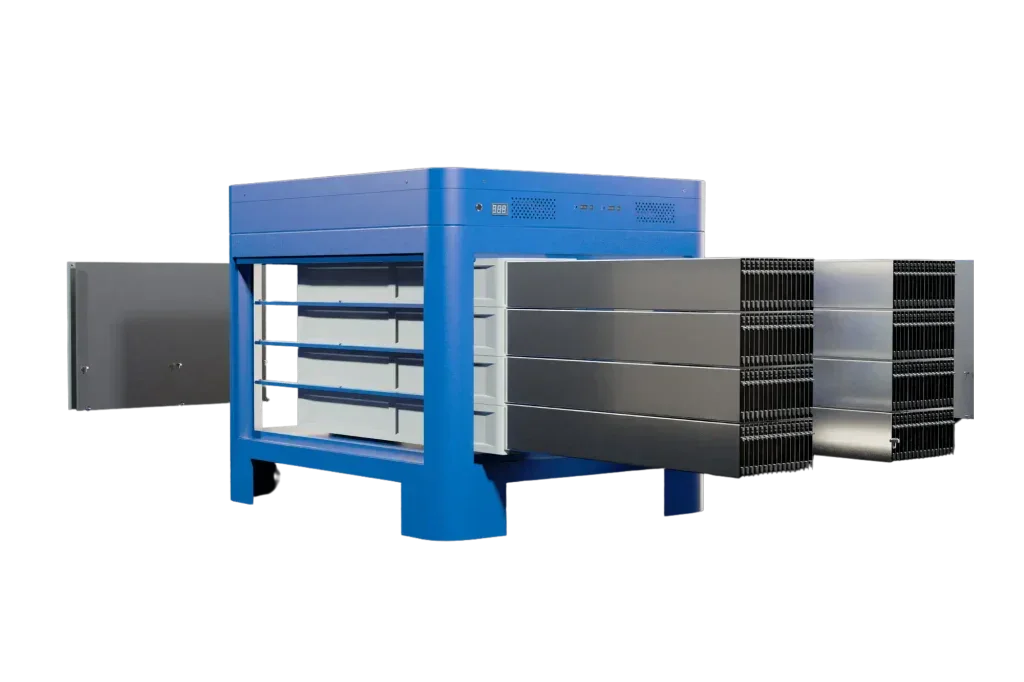

| Cell Configuration | 24S4P |
| Max Continuous Discharge Current | 500 A |
| Max Continuous Power | 22 kVA |
| Max Discharge Peak Current | 600 A (5 seconds) |
| Max Charge Current | 500 A |
| MPPT Charge Controller | 6000W * 2 |
| Charge Temperature Range | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight | 1827 lb |
| Depth | 43.5 in |
| Width | 34.1 in |
| Height | 38.4 in |
