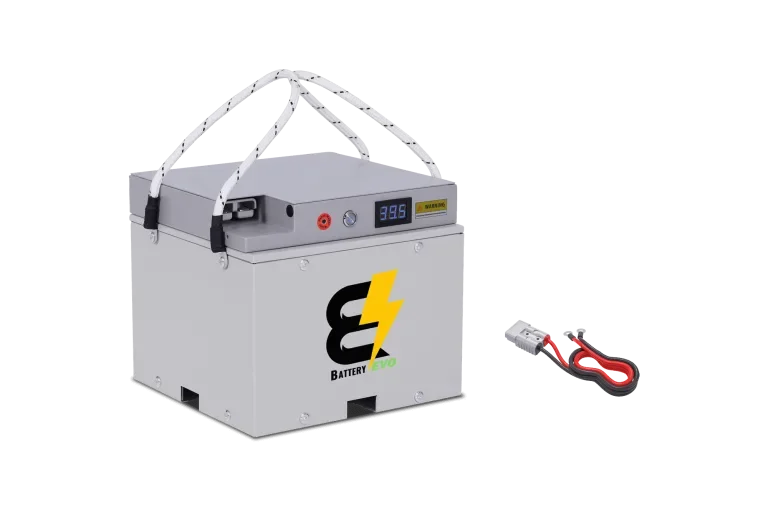

RAPTOR 36V 2.5kWh Lithium Battery
RAPTOR 36V 2.5kWh Lithium Battery
Power your golf cart, utility vehicle, or off-grid system with the BatteryEVO 36V Raptor Lithium Battery, delivering reliable lithium performance in a compact, lightweight design. Engineered with advanced LiFePO₄ technology and an intelligent Battery Management System (BMS), the Raptor provides fast charging, maintenance-free operation, and dependable power for demanding applications.
Designed for long-lasting efficiency, the Raptor is ideal for electric vehicles, marine systems, and off-grid energy storage, offering consistent performance, enhanced safety, and lightweight portability for everyday use.
| Model | 36V RAPTOR 10kWh |
| System Voltage | 36V |
| Nominal Voltage | 38.4 V |
| Chemistry | LiFePO₄ (LFP) |

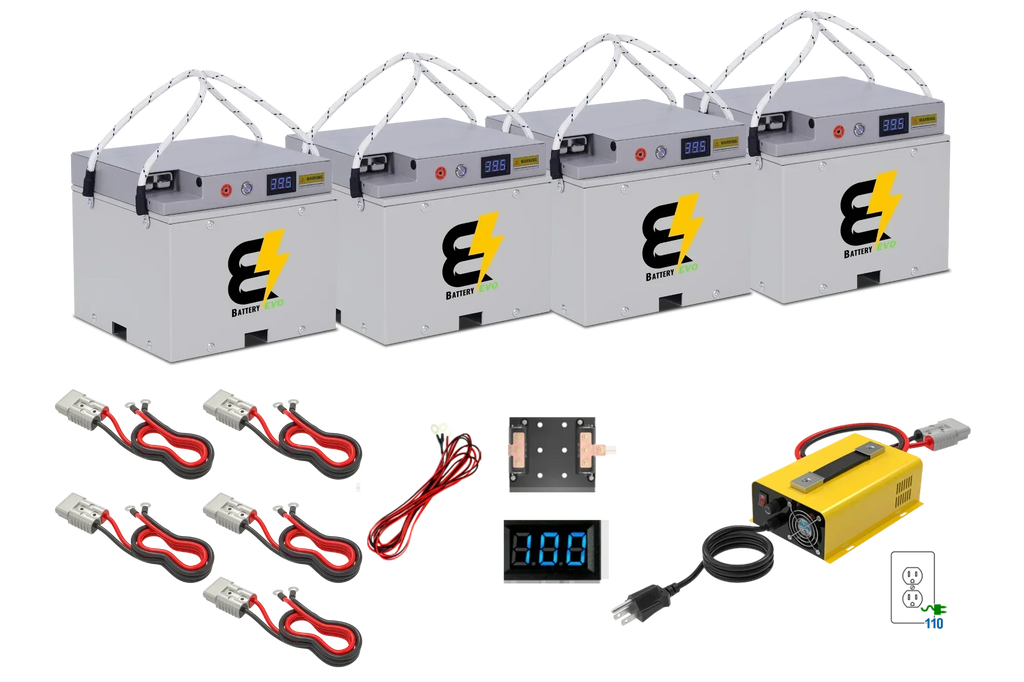

| Energy Capacity | 10 kWh (4 × 2.5kWh) |
| Capacity | 268 Ah (4 × 67Ah) |
| Charging Voltage | 41.4V – 43.8V |
| Max Charge Voltage | 44.4 V |
| Operating Voltage Range | 33.6V – 43.8V |
| Suggested Low Voltage Cutoff | 33.6V – 38.0V |
| Cell Configuration | 12S1P (per battery) |
| Max Continuous Discharge Current | 400 A (100A × 4) |
| Max Continuous Power | 15,360 W |
| Max Discharge Peak Current | 1200 A (300A × 4 for 5 seconds) |
| Max Charge Current | 400 A (100A × 4) |
| Charge Temperature Range | 0°C (32°F) to 55°C (131°F) |
| Discharge Temperature Range | -20°C (-4°F) to 55°C (131°F) |
| Optimal Discharge Temperature Range | 15°C (59°F) to 35°C (95°F) |
| Storage Temperature Range | -5°C (23°F) to 35°C (95°F), up to 6 months |
| Weight | 220 lb (4 × 55 lb) |
| Dimensions (Each Battery) | 10.9 × 10.4 × 9.6 in |
| Included Charger | 43.8V DC, 20A Lithium Charger |
| Included Accessories | 4 × 6AWG BE175 Cables, 4AWG Battery Cable, 24AWG Meter Cable, LED Capacity Meter (12S LFP), Parallel Busbar |
